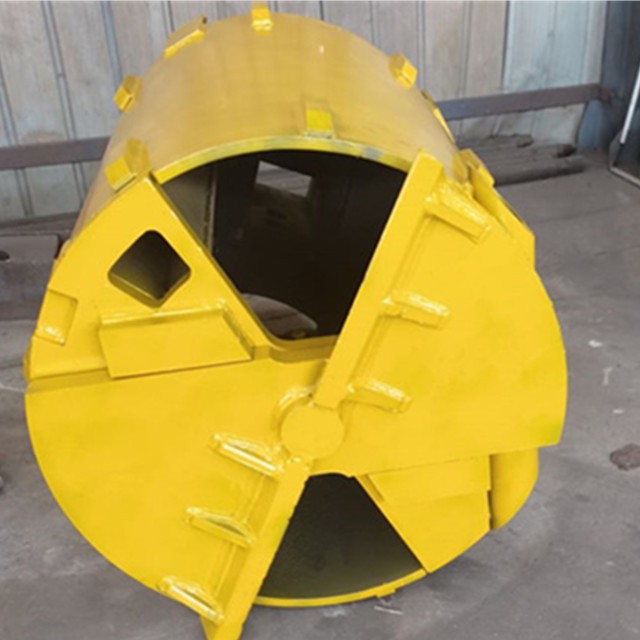

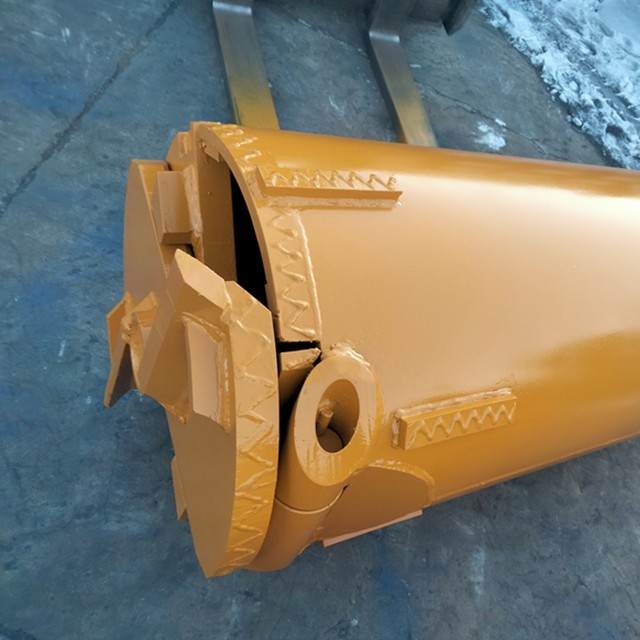

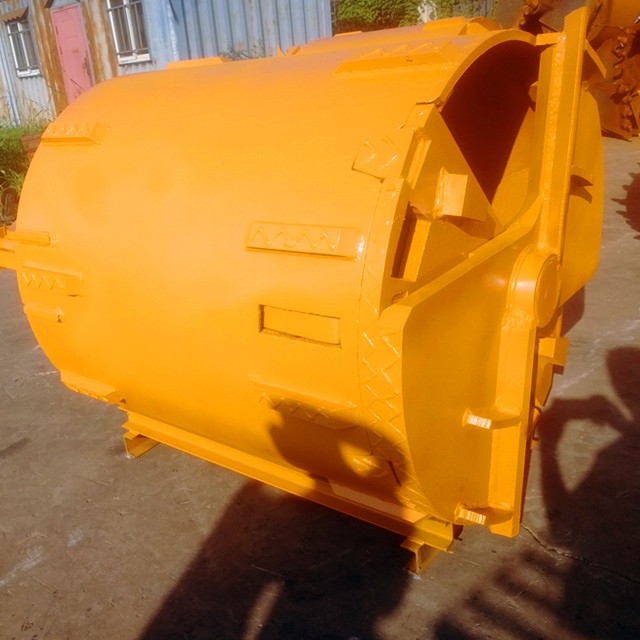

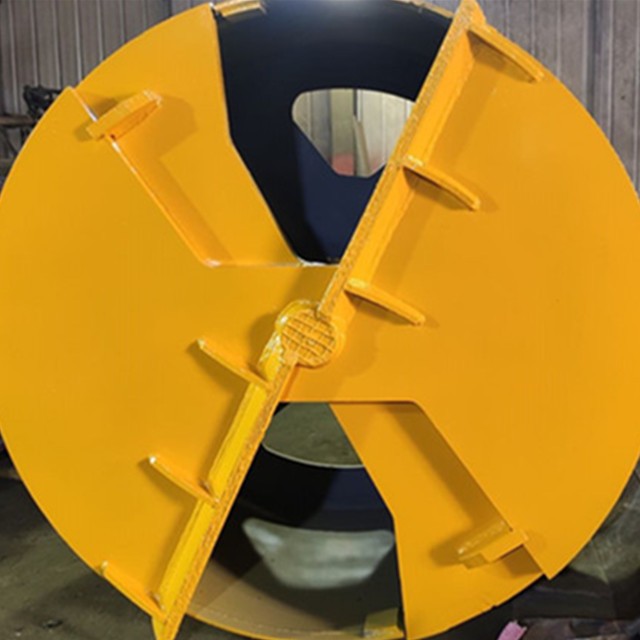

Cleaning Bucket

  • Product Item : DC-Cleaning bucket
  • Category: Drill Bucket & Auger
  • Type: Double cut double bottom
  • Bucket shell thickness: 16mm, 20mm, 25mm etc
  • Kelly box: 100, 110, 150, 200, 250mm
  • Bucket shell length: 1200, 1000, 800mm
  • INQUIRY   EMAIL

Fetures

1,Kelly box 130mm/150mm/200mm/250mm customized.
2,Ventilation pipe.
3,Wear protection: hard facing or wear strips.

Mian Applications

1,Cleaning the bottom of bored holes.


Specifications of Soil Drilling Bucket

There are few type of soil drilling bucket: single cut double bottom, double cut double bottom

Diameter(mm) Shell Length(mm) Thickness(mm) Weight(KG)
600 1200 16/20 740
700 1200 16/20
840
800 1200 16/20
915
900 1200 16/20
1025
1000 1200 16/20
1110
1100 1200 16/20
1295
1200 1200 16/20
1430
1300 1200 16/20
1590
1400 1200 16/20
1770
1500
1200 16/20
1990
1600
1200 16/20
2195
1700
1000 20 2590
1800
1000 20 2870
2000
800 20 3355
2200 800 20 3800
2500 800 20 4500
Other sizes can be customized

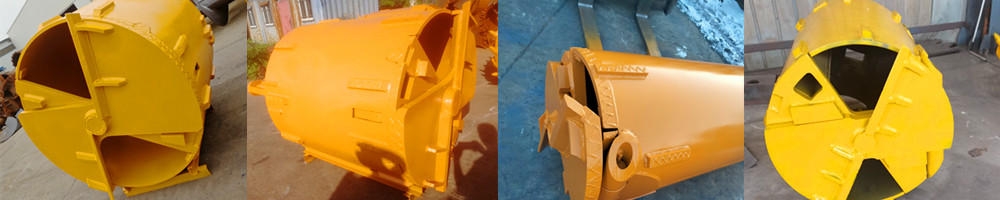

Factory Views
