Mud Slurry Desander

Main applications：

1，Slurry-supported grab works for diaphragm wall.
2，Bored piling excavation .
3，Water well drilling.
4，Geothermal drilling.

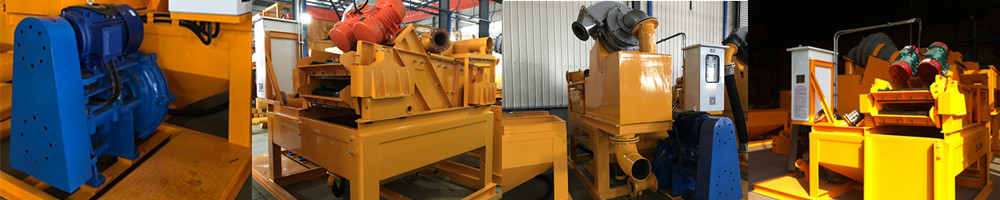

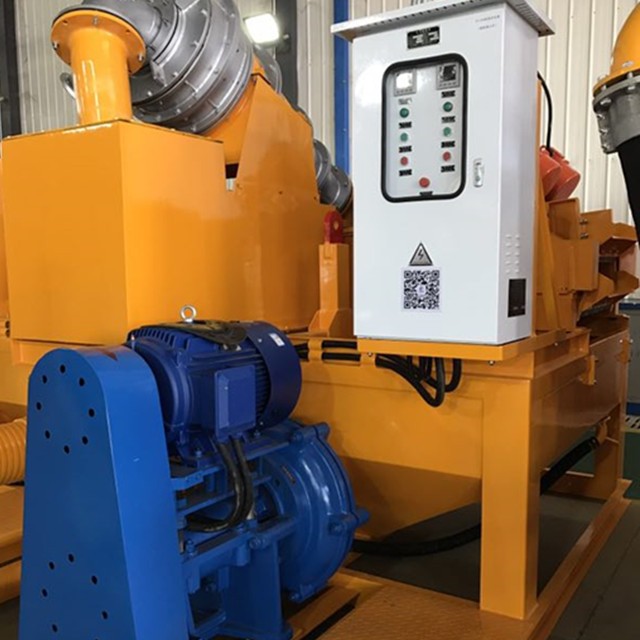

Desander Details

Features：

1，Double screen mesh.
2，Simple operation and easy maintenance.
3，Improving working efficiency by 50%.

4，Long service life and high reliability.

Specifications

Type	DCD100	DCD150	DCD200	DCD250
Slurry treatment capacity-m³/h	100	150	200	250
ID of cyclone-mm	250	250	500	500
Qty. of cyclone	2	2	1	1
Median cut point	40	40	70	70
Slurry pump power-kw	22	30	45	55
Sieve brating motors	1kw*2	1kw*2	1.5kw*2	1.5kw*2
Pump motors-kw	24	32	48	58
Transportation Size-mm	3350*2000*2800	3350*2000*2800	3350*2000*2950	3350*2000*2950
Sieve pannl qty	2	2	3	3
Material	Polyurethane	Polyurethane	Polyurethane	Polyurethane
Mesh size-mm	0.2	0.2	0.4	0.4
Weight-kg	2400	2800	4600	5300
Other sizes can be customized

Workshop

Spare parts

Packing and Delivery

Jobsite
